What Makes a Countertop "Backlit"
A backlit onyx countertop isn't a special type of stone — it's a normal slab of translucent onyx paired with an LED light source mounted behind or beneath it. The stone's natural veining and color come from the light passing through it, not reflecting off it. Cut the same slab and mount it against a solid wall instead, and you get a completely ordinary (if beautiful) counter. The lighting is the difference between a nice surface and a genuine architectural feature.
That distinction matters because it means the quality of the final result depends almost entirely on the lighting system, not just the stone. A well-chosen slab paired with a mediocre light source will look patchy, with hot spots and dark corners. The same slab paired with a properly engineered system will glow evenly from edge to edge. Anyone shopping for backlit onyx should be evaluating the light as carefully as the stone.
How the Lighting Actually Works
There are two common approaches, and the right one depends on the project.
Flexible LED sheets are thin, peel-and-stick LED panels designed to sit directly behind the stone — ideal for countertops, waterfall edges, and backsplashes where depth is limited. They distribute light evenly across the surface without the visible "striping" that comes from using individual LED strips spaced too far apart.
Acrylic light panels are ultra-thin edge-lit panels that can go up to 48"×96", making them a better fit for larger installations like feature walls or oversized islands where a single flexible sheet isn't practical. Light enters from the edges of the acrylic and diffuses upward into the stone.
Both approaches require the light source to be sized and spaced correctly for the specific slab's thickness and translucency — onyx varies significantly from block to block, so a system tuned for one slab won't necessarily look right under a different one.
Where Backlit Onyx Shows Up
Backlit stone has moved well beyond hotel lobbies and high-end retail. The most common residential and commercial applications include:

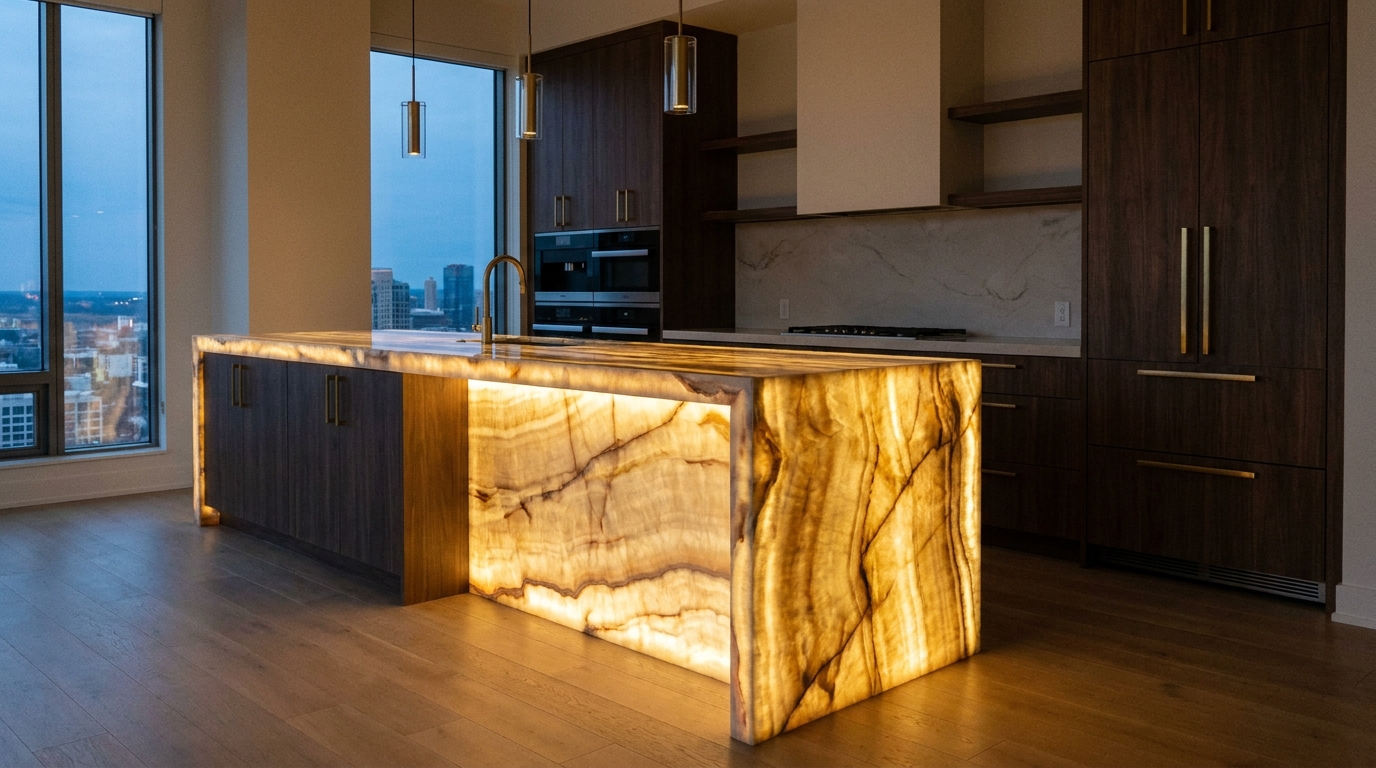

- Kitchen islands and waterfall countertops, where the glow becomes the room's focal point after dark
- Bathroom vanities, pairing warm, even light with natural stone veining
- Bar tops and wine racks, common in both home theaters and hospitality spaces
- Reception desks and feature walls, used in offices, restaurants, and retail to reinforce a brand's materials palette
In every one of these cases, the lighting has to be built to the exact dimensions of the piece — a bar top isn't the same size as a bathroom vanity, and a system designed for one won't transfer cleanly to the other.
Choosing the Right System for Your Project
A few questions determine which lighting approach and configuration make sense:
How thick and how translucent is the stone? Thicker or denser slabs need more output to backlight evenly, which affects LED spacing and driver sizing.
What's the mounting depth? Countertops and backsplashes typically have limited clearance behind the stone, which favors flexible LED sheets over bulkier alternatives.
Does the piece need to dim? Most installations benefit from dimmable lighting — kitchen islands used for both prep and evening entertaining are the clearest example — so confirm the system is compatible with a wall dimmer or remote control before ordering.
Is there a size limit? For anything beyond a standard countertop — a full feature wall, for instance — backlit panel systems with LED bars throughout are built without an upper size limit, which standard LED strip lighting can't match.
Because onyx projects are rarely standard sizes, off-the-shelf lighting kits are a poor fit. Prime Light Boxes designs and manufactures each system to the customer's exact dimensions rather than asking the stone to conform to a fixed-size product.
Safety, Certification, and Longevity
Backlit stone lighting runs for hours every evening in kitchens, bathrooms, and commercial spaces, so the electrical components matter as much as the visual result. Every Prime Light Boxes system is CSA/UL certified to North American electrical safety standards and ships with a UL/ETL-approved power supply sized with 20% extra capacity — never sold as a separate add-on. The LEDs themselves are rated for 50,000+ hours of use, and every unit carries a 3-year warranty.
All of this is designed and manufactured in-house at the company's Richmond Hill, Ontario facility — not outsourced to overseas parts suppliers and assembled locally. That matters for backlit onyx specifically, because it means the lighting can be engineered and tested against the actual slab dimensions rather than shipped as a generic kit and hoped to fit.
Cost, Lead Time, and Ordering
Because every onyx backlighting project is custom, pricing is quote-based rather than fixed — it depends on the panel type, size, and slab characteristics. Most orders ship in 1 to 2 weeks, with rush turnaround available for smaller projects on request. Orders of 5 or more units qualify for volume pricing, which is relevant for commercial projects like hospitality feature walls or multi-unit retail rollouts. Shipping within Canada is free, and orders to the US ship duty-free and tax-exempt under CUSMA.
Getting Started
Backlit onyx is one of those details that separates a good kitchen or lobby from a memorable one, but only if the lighting behind the stone is engineered for that specific slab rather than bolted on as an afterthought. If you're planning a project — a waterfall island, a vanity, a feature wall — the most useful first step is sending along the stone's dimensions and thickness so the lighting can be sized correctly from the start.
Prime Light Boxes builds onyx and stone backlighting systems to custom dimensions, with CSA/UL certification and a 3-year warranty on every unit, manufactured in-house in Richmond Hill, Ontario.
